How to Set Up Let’s Encrypt SSL for WordPress on Apache Behind a Firewall

Securing your WordPress website with SSL (Secure Sockets Layer) is essential for protecting sensitive data and ensuring user trust. SSL encrypts the communication between your website and its visitors, safeguarding against eavesdropping and data theft. Let’s Encrypt is a free, automated, and open Certificate Authority (CA) that provides SSL/TLS certificates, making it an excellent choice for securing websites without incurring costs. However, setting up Let’s Encrypt SSL can be more complex when your server is behind a firewall, as it may restrict access to the necessary ports for certificate validation and HTTPS traffic. This guide will walk you through the process of setting up Let’s Encrypt SSL for a WordPress site running on an Apache server, even when your server is behind a firewall. The steps are explained in a clear, formal manner while keeping the language simple and easy to understand.

Prerequisites

Before you begin, ensure you have the following:

• A server with Apache web server installed.
• WordPress installed and running on your Apache server.
• A domain name that points to your server’s IP address.
• Access to your server via SSH.
• Sudo privileges to install software and manage configurations.

Step 1: Install Certbot

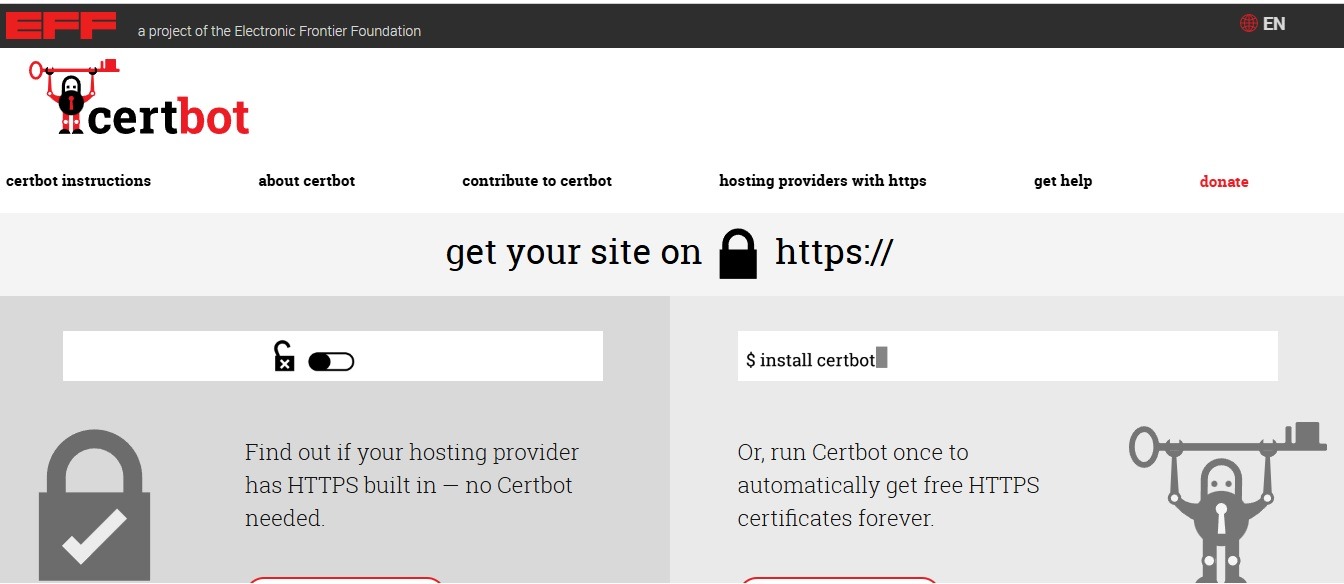

Certbot is the official tool provided by Let’s Encrypt to obtain and manage SSL certificates. It automates the process of requesting certificates and configuring your web server (in this case, Apache) to use them.

For Ubuntu/Debian

If your server is running Ubuntu or Debian, you can install Certbot with the following commands:

sudo apt update
sudo apt install certbot python3-certbot-apache

Note: If you are using a different Linux distribution, refer to the Certbot documentation for installation instructions specific to your operating system.

Step 2: Configure Firewall

When your server is behind a firewall, you must ensure that incoming traffic on ports 80 (HTTP) and 443 (HTTPS) is allowed. Let’s Encrypt uses port 80 to validate your domain ownership during the certificate issuance process, and port 443 is required for HTTPS traffic.

Using UFW (Uncomplicated Firewall)

If your server uses UFW, which is common on Ubuntu, you can allow Apache traffic with:

sudo ufw allow 'Apache Full'

Using iptables

If you are using iptables, you can add rules to allow traffic on ports 80 and 443:

sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT
sudo iptables -A INPUT -p tcp --dport 443 -j ACCEPT

Important: Save these rules if your firewall configuration does not persist them automatically. For example, on Ubuntu, you can save iptables rules with:

sudo sh -c "iptables-save > /etc/iptables.rules"

Additional Notes on Firewalls: Let’s Encrypt uses the HTTP-01 challenge to verify domain ownership, which requires incoming traffic on port 80. Ensure your server can receive requests from Let’s Encrypt’s servers. If your server is behind a highly restrictive firewall with no direct internet access, alternative methods like the DNS-01 challenge or using a VPN may be necessary, but these are beyond the scope of this guide. For most setups, allowing ports 80 and 443 is sufficient.

Step 3: Obtain Let’s Encrypt Certificate

With Certbot installed and your firewall configured, you can now request a Let’s Encrypt certificate. Run the following command:

sudo certbot --apache

This command will:

• Ask for your email address (used for certificate expiration notices).
• Ask you to agree to Let’s Encrypt’s terms of service.
• Ask whether you want to redirect all HTTP traffic to HTTPS (recommended for better security).

Follow the prompts to complete the process. Certbot will automatically configure Apache to use the new SSL certificate and enable HTTPS for your site.

Step 4: Verify Apache Configuration

After obtaining the certificate, Certbot creates a new virtual host configuration file for SSL. This file is typically located at:

/etc/apache2/sites-available/000-default-le-ssl.conf

(The exact path may vary depending on your Apache setup.)

You can verify the configuration by checking this file:

sudo nano /etc/apache2/sites-available/000-default-le-ssl.conf

Look for the <VirtualHost *:443> block, which should include references to the SSL certificate and key files provided by Let’s Encrypt. For example:

<VirtualHost *:443>
    ServerAdmin webmaster@localhost
    ServerName yourdomain.com
    DocumentRoot /var/www/html

    SSLEngine on
    SSLCertificateFile /etc/letsencrypt/live/yourdomain.com/fullchain.pem
    SSLCertificateKeyFile /etc/letsencrypt/live/yourdomain.com/privkey.pem
    Include /etc/letsencrypt/options-ssl-apache.conf
</VirtualHost>

Ensure that the SSLCertificateFile and SSLCertificateKeyFile paths match the ones provided by Certbot.

Step 5: Set Up Automatic Renewal

Let’s Encrypt certificates are valid for 90 days, so it’s crucial to set up automatic renewal to avoid downtime or security gaps. Certbot can handle this automatically.

First, test the renewal process with a dry run:

sudo certbot renew --dry-run

This command simulates the renewal process without actually renewing the certificate. If successful, you can check the status of the renewal timer:

sudo systemctl status certbot.timer

If the timer is not running, start and enable it with:

sudo systemctl start certbot.timer
sudo systemctl enable certbot.timer

This ensures that Certbot will automatically renew your certificate before it expires.

Step 6: Optimize Apache for SSL (Optional)

For enhanced security, you can add security headers to your Apache SSL configuration. These headers help protect against common web vulnerabilities.

In your SSL virtual host configuration file (e.g., /etc/apache2/sites-available/000-default-le-ssl.conf), add the following inside the <VirtualHost *:443> block:

Header always set X-Content-Type-Options "nosniff"
Header always set X-XSS-Protection "1; mode=block"
Header always set X-Frame-Options "DENY"
Header always set Content-Security-Policy "default-src 'self'"

• X-Content-Type-Options: nosniff – Prevents browsers from interpreting files as a different MIME type, reducing security risks.
• X-XSS-Protection: 1; mode=block – Enables the browser’s built-in protection against cross-site scripting (XSS) attacks.
• X-Frame-Options: DENY – Prevents clickjacking by stopping your site from being embedded in an iframe.
• Content-Security-Policy – Restricts which sources of content can be loaded, helping prevent cross-site scripting and other attacks.

After making changes, restart Apache to apply them:

sudo systemctl restart apache2

Step 7: Harden WordPress Security

Setting up SSL is just one part of securing your WordPress site. Here are additional steps to strengthen your site’s security:

• Keep everything updated: Regularly update WordPress core, themes, and plugins to patch security vulnerabilities.
• Use security plugins: Install plugins like Wordfence or Sucuri to monitor and protect your site from threats.
• Implement a Web Application Firewall (WAF): A WAF can filter out malicious traffic before it reaches your server.
• Regular backups: Back up your WordPress site regularly to prevent data loss in case of an attack or failure.

Table: Security Plugins for WordPress

Conclusion

By following these steps, you can securely set up Let’s Encrypt SSL for your WordPress site on Apache, even when your server is behind a firewall. This process ensures that your website is protected with encryption while maintaining accessibility. Regularly updating your software and implementing additional security measures will further safeguard your site, providing a secure and trustworthy experience for your visitors.
